Concrete Slab Install

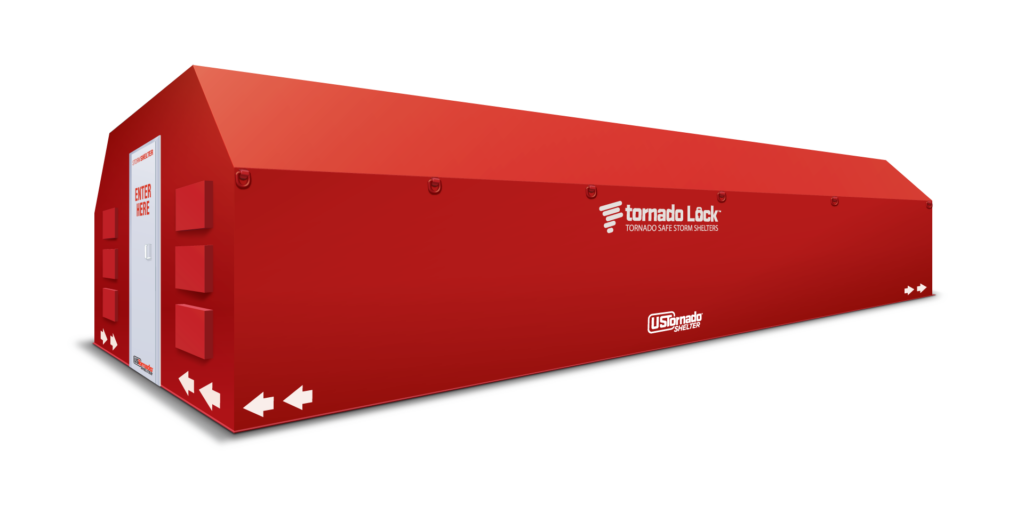

10x40 Tornado Shelter – Concrete Slab Install

The CS4010 is an above-ground steel tornado shelter (10' x 40') for up to 133 persons Maximum Occupancy (80 at design occupancy), anchored to an engineered concrete slab for permanent placement. It has two storm-rated doors and 400 sq ft of protected floor area. Designed to FEMA P-361 and ICC 500 criteria for EF-5 tornadoes (250 mph winds).

Maximum Occupancy
Up to 133 persons
Footprint
10' x 40' · 400 sq ft
Storm-rated doors
2
Wind rating
EF-5 · 250 mph

Also available as a Mobile Base (No Concrete) (CSB4010).

CS4010 specifications

ModelCS4010
Footprint10' x 40'
Protected floor area400 sq ft
Maximum OccupancyUp to 133 persons (3 sq ft / person)
Design occupancy80 persons (5 sq ft / person)
Storm-rated doors2
Install typeConcrete Slab Install
Wind ratingEF-5 tornado, 250 mph
StandardsDesigned to FEMA P-361 and ICC 500 criteria
ConstructionSolid-welded steel

Concrete Slab Install

  • Anchored to an engineered concrete slab for permanent placement.
  • Best for schools, plants, campuses and community sites that need a long-term shelter.
  • Plan for slab design, site prep and local permitting in your schedule — we help you scope it.

Designed to FEMA P-361 and ICC 500 criteria for EF-5 tornadoes (250 mph winds).

Full engineering details, 3D model and anchoring specs: CS4010 on US Tornado Shelter.

About the CS4010

CS4010 – TORNADO SHELTER
10×40 Community Storm Shelter
2 Storm-Rated Access Doors
Occupancy: 80 – Maximum: 133

Tornado Shelter Standards
» Tornado Rated up to EF-5 Tornado
» Wind Load Resistance of 250 mph
» FEMA 320 / 361 & ICC500 Compliant
» IBC Structural Design Compliant
» Natural Air Ventilation
» Interior Bench Seating and LED Lighting

Compare concrete slab install sizes

ModelFootprintMaximum OccupancyDesign occupancyDoorsInstall type
CS10088' x 10'Up to 26 persons16 persons1Concrete Slab Install
CS101010' x 10'Up to 33 persons20 persons1Concrete Slab Install
CS20088' x 20'Up to 53 persons32 persons1Concrete Slab Install
CS201010' x 20'Up to 66 persons40 persons1Concrete Slab Install
CS30088' x 30'Up to 80 persons48 persons2Concrete Slab Install
CS301010' x 30'Up to 100 persons60 persons2Concrete Slab Install
CS40088' x 40'Up to 106 persons64 persons2Concrete Slab Install
CS50088' x 50'Up to 131 persons77 persons2Concrete Slab Install
CS401010' x 40'Up to 133 persons80 persons2Concrete Slab Install
CS60088' x 60'Up to 158 persons93 persons2Concrete Slab Install
CS501010' x 50'Up to 164 persons97 persons2Concrete Slab Install
CS601010' x 60'Up to 198 persons117 persons2Concrete Slab Install

Frequently asked questions

How many people does the CS4010 hold?

The CS4010 holds up to 133 persons Maximum Occupancy (3 sq ft per person), with a design occupancy of 80 persons (5 sq ft per person).

Is the CS4010 a Concrete Slab Install or Mobile Base?

The CS4010 is a Concrete Slab Install, anchored to an engineered concrete slab for permanent placement. It's also available as a Mobile Base (No Concrete) (CSB4010).

What size is the CS4010 and how many doors does it have?

The CS4010 measures 10' x 40' (400 sq ft of protected floor area) with 2 storm-rated access doors.
